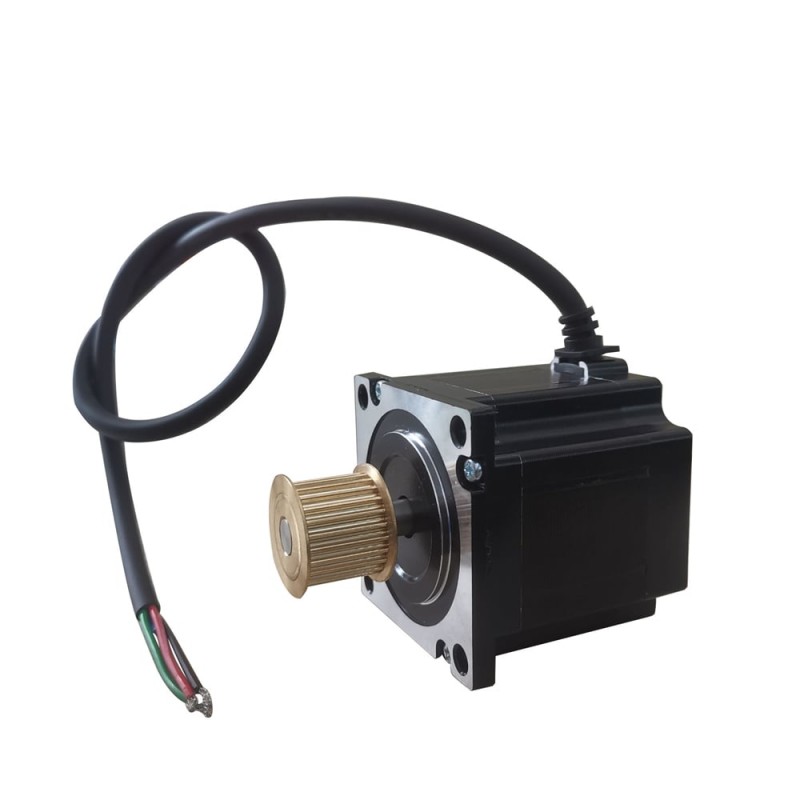

This big electric dc motor is a 3 Phase NEMA 23 stepper motor with 1.2degree step angle/300 steps per revolution & size 57x56mm, which can generates a good torque 0.9Nm/127.8oz.in and 0-1000RPM. A 24 teeth pulley is fixed in the output shaft for Laser Cutting Machine.
Electrical Specification
- Part Number: 57HT56-5203C1
- Step Angle: 1.2deg
- Phase Number: 3
- Holding Torque: 0.9Nm/127.8oz.in
- Rated Current/phase: 5.2A
- Phase Resistance: 0.77ohms
- Inductance: 1.8mH
- Driving Voltage: 24-72V

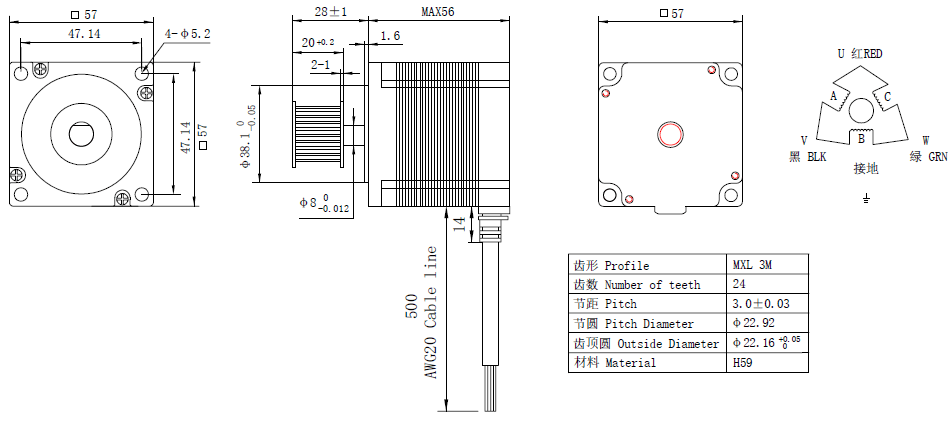

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ8mm
- Shaft Length: 28mm
- D-cut Length: 20mm
- Lead Length: 500mm
- Weight: 0.75kg
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 0.9 |
| Holding Torque(oz.in) | 127.8 |
| Rated Current(A) | 5.2 |
| Phase Resistance(ohm) | 0.77 |
| Phase Inductance(mH) | 1.8 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| No. of Leads | 3 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.75 |
