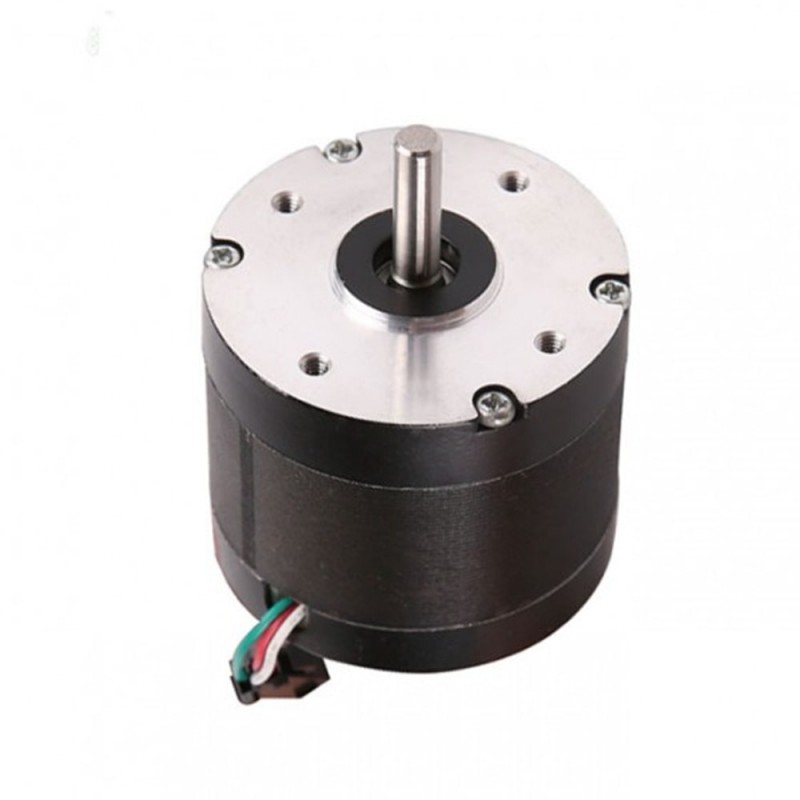

This big electric dc motor is a 3 Phase NEMA 23 stepper motor with 1.2degree step angle/300 steps per revolution & size 57x40mm, which can generates a good torque 0.4Nm/56.8oz.in and 0-1000RPM.
Electrical Specification
- Part Number: 57HS40-1503S
- Phase Number: 3
- Step Angle: 1.2deg
- Holding Torque: 0.4Nm/56.8oz.in
- Rated Current/phase: 1.5A
- Phase Resistance: 6.0ohms
- Inductance: 6.2mH
- Driving Voltage: 24-72V
Physical Specification
- Frame Size: Φ57mm
- Body Length: 40mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- Number of Leads: 3
- Lead Length: 500mm
- Weight: 0.35Kg
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 0.4 |
| Holding Torque(oz.in) | 56.8 |
| Rated Current(A) | 1.5 |
| Phase Resistance(ohm) | 6.0 |
| Phase Inductance(mH) | 6.2 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 40 |
| Shaft Type | Round |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| No. of Leads | 3 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.35 |

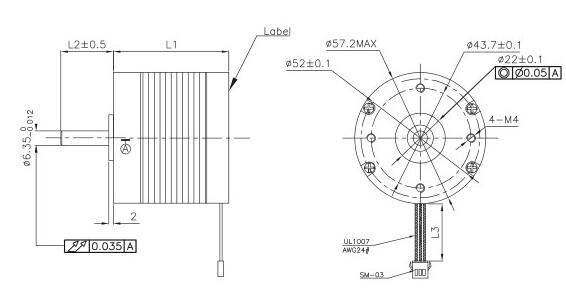

L1=40mm, L2=21mm, L3=500mm
