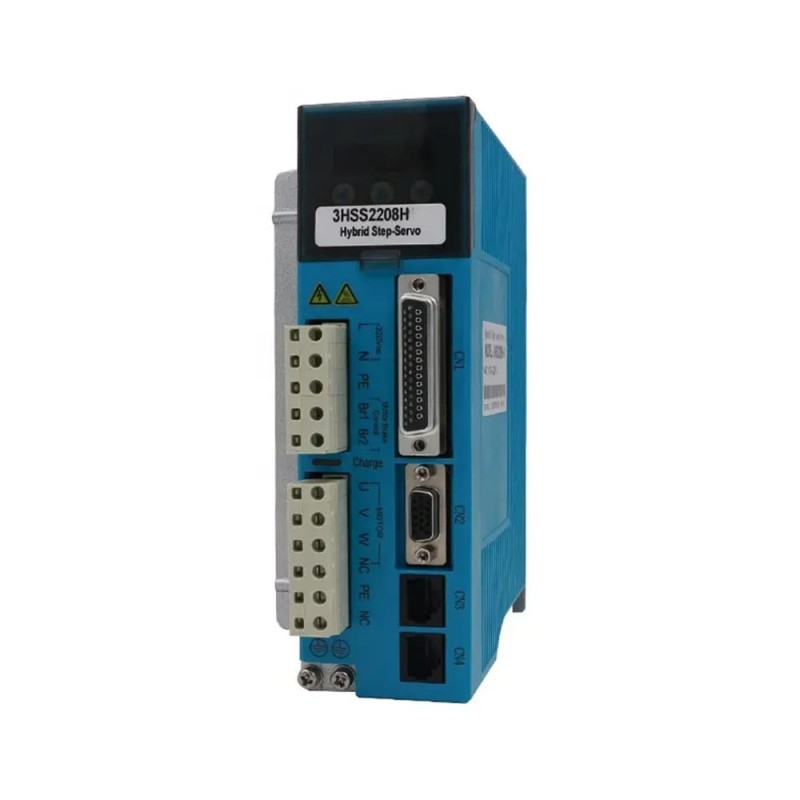

3 Phase Closed-loop Stepper Driver 3HSS2208H 110-250VAC for NEMA 42 & 51 Stepper Motor
- Part Number: 3HSS2208H
- Lead Time: In Stock
- Unit Price: $200.00
- Sales: 19
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
3 Phase Closed-loop Stepper Driver 3HSS2208H 110-250VAC for NEMA 42 & 51 Stepper Motor
Key Features:
- Without losing step, High accuracy in position
- 100% rated output torque
- Variable current control technology ,High current efficiency
- Little vibration, Smooth and reliable moving at low speed
- Accelerate and decelarate control inside,Great improvement in smoothness of starting or stopping the motor
- User-defined micro steps
- Compatible with 1000 and 2500 lines encoder
- No adjustment in general application
- Lack of phase, over current,over voltage and over position protection
- Six digital tube display,easy to set parameters and monitor the motor running state
Operating Environment and other Specifications:
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Operating Temperature: 0-70℃
- Humidity: 40%-90%RH
- Storage Temperature: -20-80℃
- Dimensions: 181x140.9mmx70.3mm
- Weight: 1.6KG
Contact Us
| Drive Specification | |
| Phase Number | 3 |
| Input Voltage(VAC) | 110-200 |
| Output Current(A) | 0-6 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
| Dimensions(mm) | 181x140.9x70.3 |
| Weight(KG) | 1.6 |
