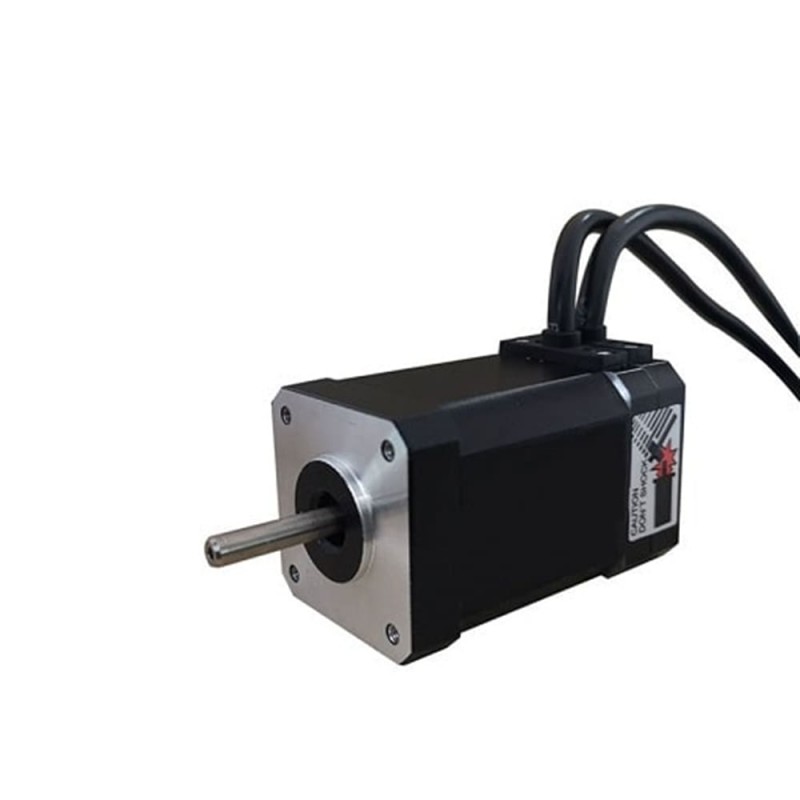

24V 4000RPM 0.2Nm 65W 3.5A 42x42x70mm Brushless DC Motor
- Part Number: 42HS70-2430
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 42mm electric motor is a standard 24 voltage brushless DC motor, which generates a high power 65W and a strong torque 0.2Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.

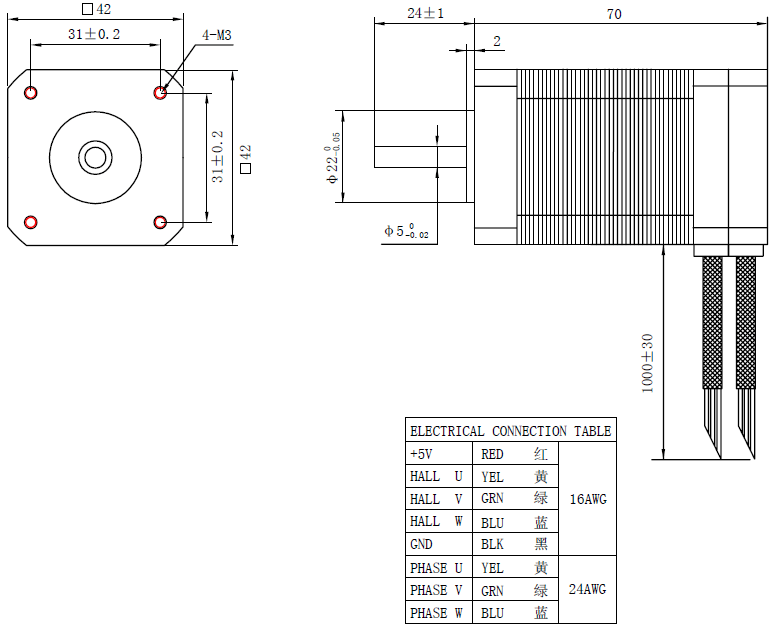

Specifications
- Part Number: 42HS70-2430
- Rated Voltage: 24V
- Rated Curent: 3.5A
- Rated Power: 65W
- No-loaded Speed: 4000RPM
- Rated Speed: 3000RPM
- Rated Torque: 0.2Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 42x42mm
- Motor Length: 70mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- Weight: 0.5KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 24 |
| Rated Current(A) | 3.5 |
| Rated Power(W) | 65 |
| Rated Torque(Nm) | 0.2 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 4000 |
| Insulation Class | B |
| Sensor Type | Hall |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 70 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Weight(KG) | 0.5 |
