24V 372RPM 0.2Nm Φ28mm Geared DC Motor Ratio 21:1 Planetary Gearbox

  • Part Number: 28AI38-24V-S372
  • Lead Time: In Stock
  • Unit Price: $12.50

  • *Ship from China

- +
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

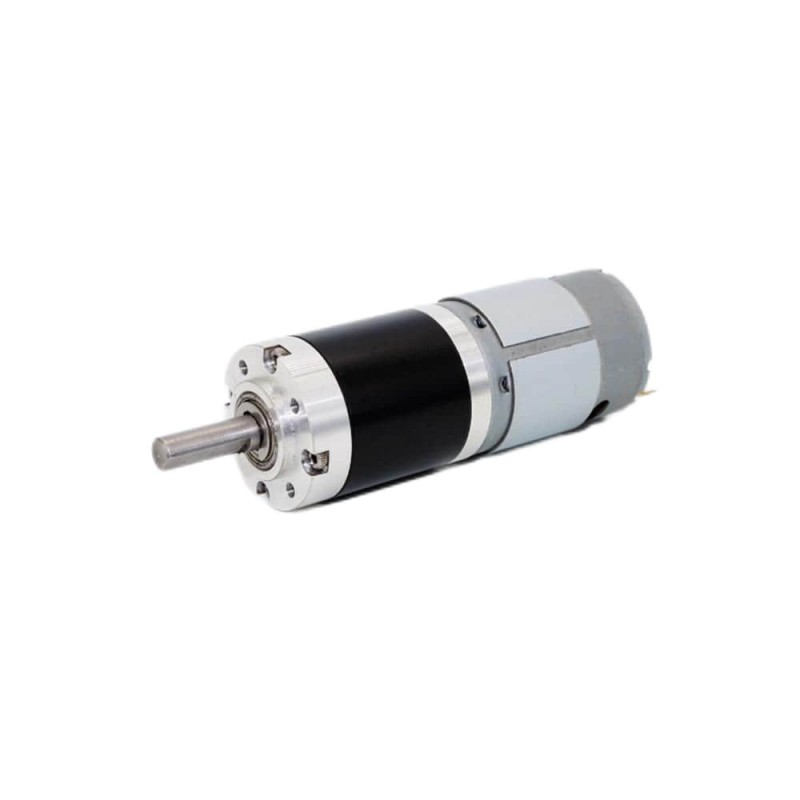

This compact 28AI38-24V-S series dc geared motor is a 24V diameter Φ28mm round brushed intagrated with a size 28mm round planetary gearbox. It leads to speed range of 2RPM to 3000RPM and holding torque upto 3Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

Specification

  • Part Number: 28AI38-24V-S372
  • Rated Voltage: 24VDC
  • Rated Power: 5.4W
  • Rated Torque: 0.2Nm
  • No-load Speed: 372RPM
  • Rated Speed: 260RPM
  • Rated Current: 0.55A
  • Insulation Class: B
  • Body Length: 67.3mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 17.5mm
  • D-cut Length: 15mm
  • Weight: 0.16KG

Contact Us

Brush/Brushless Specification
Motor TypeBrushed
Rated Voltage(VDC)24
Rated Power(W)5.4
Rated Torque(Nm)0.2
Rated Speed(RPM)260
No-load Speed(RPM)372
Frame Size(mm)Φ28
Body Length(mm)67.3
Shaft Diameter(mm)6
Shaft Length(mm)17.5
Weight(KG)0.16
  • All(0)
  • Good(0)
  • Fair(0)
  • Poor(0)
  • Image(0)

L=29.8mm
