24V 240RPM 2.2Nm Φ42mm Geared Brushed DC Motor 18:1 Planetary Gearbox
- Part Number: 42HS85-24V-PG18
- Lead Time: In Stock
- Unit Price: $55.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

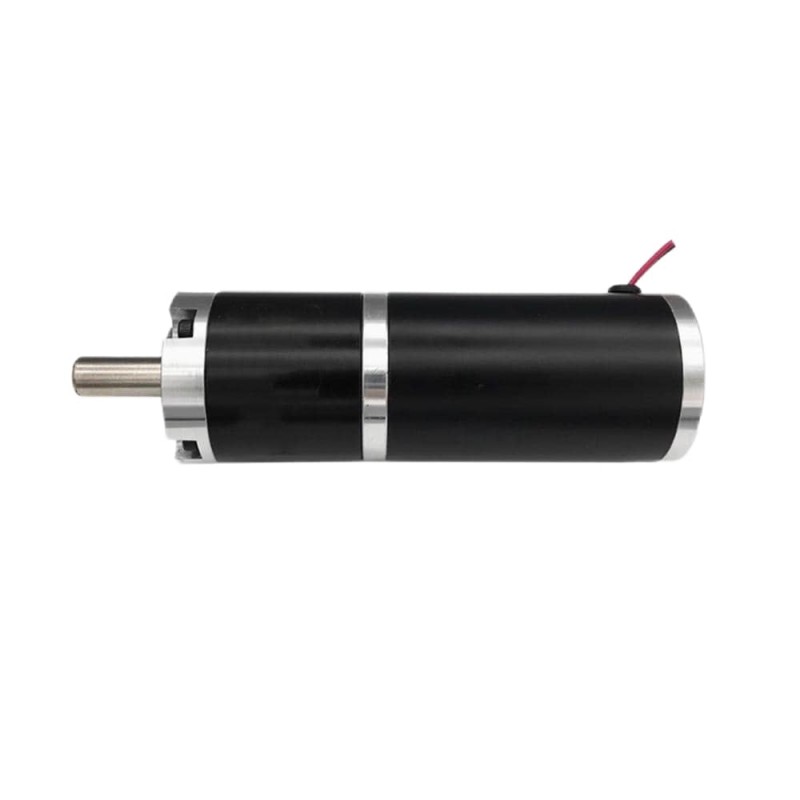

This compact 42HS85-24V-PG series dc geared motor is a 24V diameter Φ42mm round brushed intagrated with a size 42mm round planetary gearbox. It leads to speed range of 3RPM to 1000RPM and holding torque upto 10Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 42HS85-24V-PG18
- Rated Voltage: 24VDC
- Rated Power: 44W
- Reduction Ratio: 18:1
- Rated Torque: 2.2Nm
- No-load Speed: 183RPM
- Rated Speed: 240RPM
- Rated Current: 2.0A
- Insulation Class: B
- Body Length: 126mm
- Shaft Diameter: Φ10mm
- Shaft Length: 25mm
- Keyway Length: 16mm
- Weight: 0.75KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 44 |
| Rated Torque(Nm) | 2.2 |
| Rated Speed(RPM) | 183 |
| No-load Speed(RPM) | 240 |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 126 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.75 |
L=41mm
