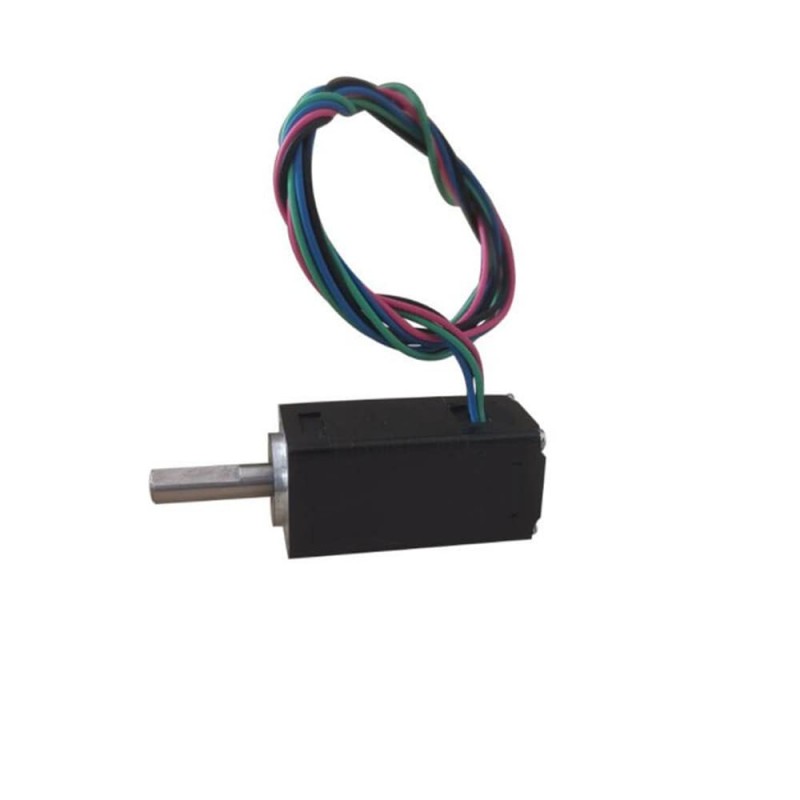

2 Phase Stepper Motor NEMA 6 1.8deg 0.3A 0.005Nm/0.71oz.in 14x30mm 4 Leads
- Part Number: 14HB30-0304S
- Lead Time: In Stock
- Unit Price: $45.00
- Sales: 18
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This micro electric stepper motor is the samllest stepper motor in market, which only has NEMA 6 size 14x14mm and a weak holding torque 0.005Nm/0.71oz.in.
Electrical Specification
- Part Number: 14HB30-0304S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.005Nm/0.71oz.in
- Rated Current/phase: 0.3A
- Phase Resistance: 22ohms
- Inductance: 4.2mH
- Driving Voltage: 5-24VDC

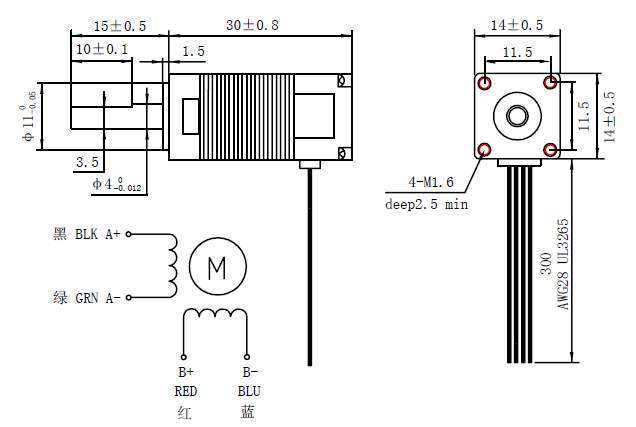

Physical Specification
- Frame Size: 14x14mm
- Body Length: 30mm
- Shaft Diameter: Φ4mm
- Shaft Length: 15mm
- D-cut Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.03kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.005 |
| Holding Torque(oz.in) | 0.71 |
| Rated Current(A) | 0.3 |
| Phase Resistance(ohm) | 22 |
| Phase Inductance(mH) | 4.2 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 14x14 |
| Body Length(mm) | 30 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 0.03 |
