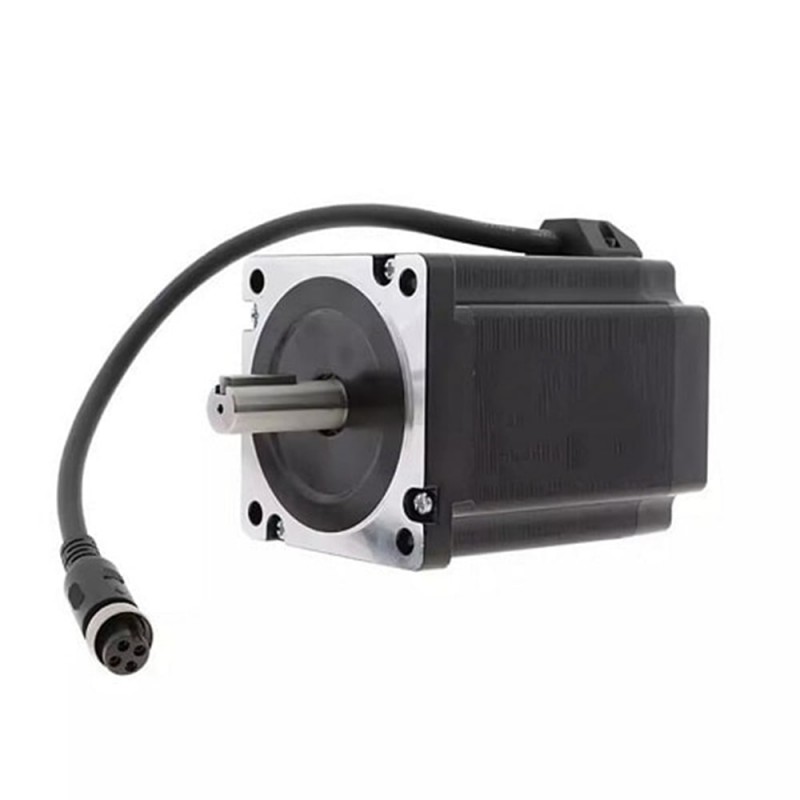

2 Phase Stepper Motor NEMA 34 6.0A 12Nm/1704oz.in 86x152mm Φ14mm Keyway Shaft
- Part Number: 86HB152-6004S
- Lead Time: In Stock
- Unit Price: $65.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 CNC stepper motor has one very powerful holding torque 12Nm/1704oz.in with diameter Φ14mm output Shaft.
Electrical Specification
- Part Number: 86HB152-6004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 12Nm/1704oz.in
- Rated Current: 6.0A
- Phase Resistance: 0.75ohms
- Inductance: 9.0mH
- Driving Voltage: 24-110V

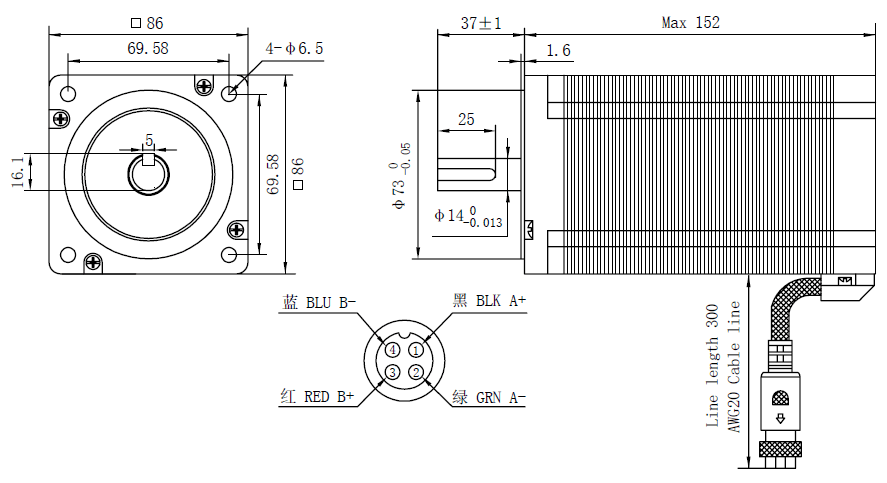

Physical Specification
- Frame Size: 86x86mm
- Body Length: 152mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 5.5kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 12 |
| Holding Torque(oz.in) | 1704 |
| Rated Current(A) | 6.0 |
| Phase Resistance(ohm) | 0.75 |
| Phase Inductance(mH) | 9.0 |
| Driving Voltage(VDC) | 24-110 |
| Physical Specification | |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 152 |
| Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Leads | 4 |
| Lead Length(mm) | 300 |
| Weight(KG) | 5.5 |
