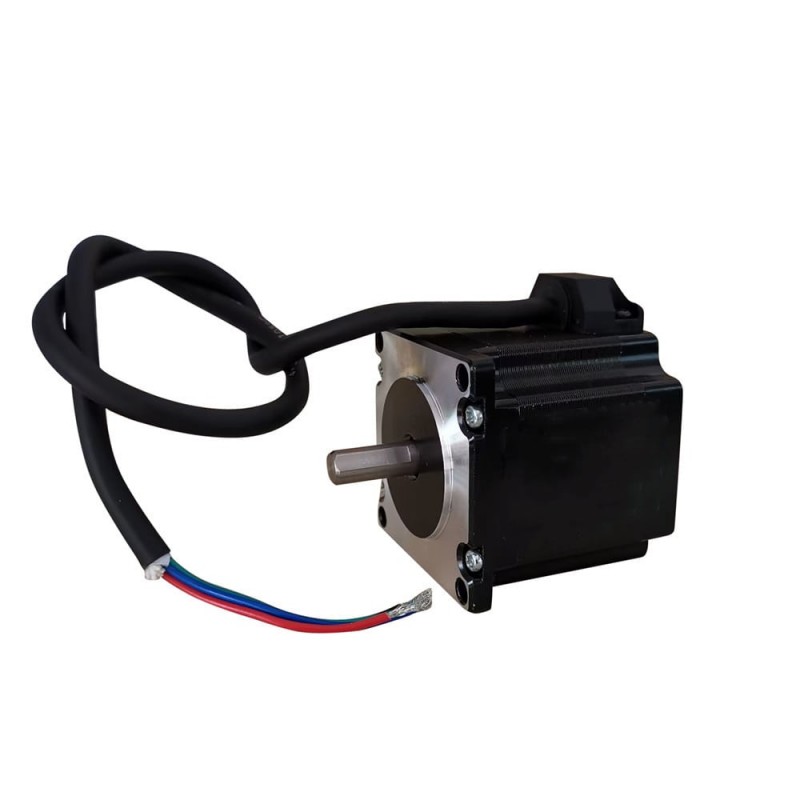

2 Phase Stepper Motor NEMA 23 1.8deg 2.8A 1.2Nm/170.4oz.in 57x56mm 4 Leads
- Part Number: 57HB56-2804S
- Lead Time: In Stock
- Unit Price: $15.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is one of the most popular NEMA 23 CNC stepper motor with 56mm body length. It has 4 wires, each phase draws 2.8A, with holding torque 1.2Nm/170.4oz.in, suitable for medecal device and CNC machines.
Electrical Specification
- Part Number: 57HB56-2804S
- Step Angle: 1.8deg
- ipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 2.8A
- Phase Resistance: 1.3ohms
- Inductance: 2.6mH
- Driving Voltage: 24-72V

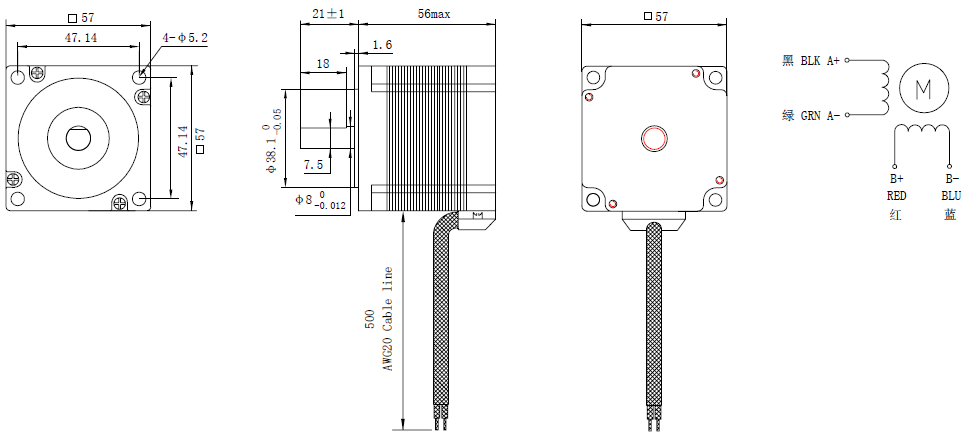

Physical Specification
- Frame Size: 57x57mm
- Body Length: 56mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 18mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.6kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 2.8 |
| Phase Resistance(ohm) | 1.3 |
| Phase Inductance(mH) | 2.6 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 56 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.6 |
