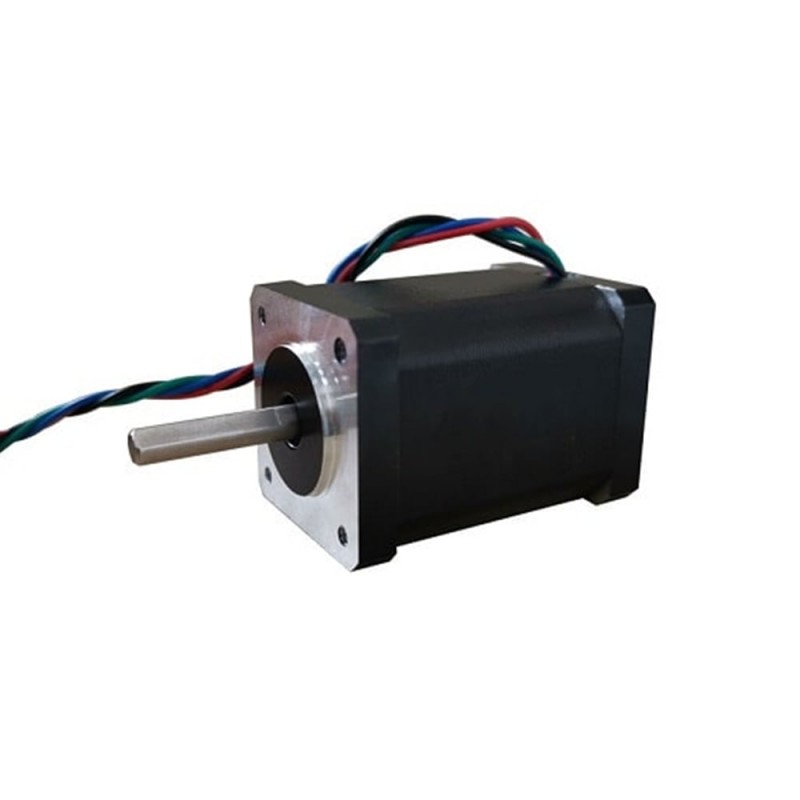

2 Phase Stepper Motor NEMA 14 1.8deg 1.5A 0.4Nm/56.8oz.in 35x52mm 4 Leads
- Part Number: 35HB52-1504S
- Lead Time: In Stock
- Unit Price: $11.50
- Sales: 52
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This bipolar NEMA 14 stepper motor has powerful output torque 0.4Nm/56.8oz.in with szie 35x35x52mm. It is an ideal choice for plastic extruder or robtics.
Electrical Specification
- Part Number: 35HB52-1504S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.4Nm/56.8oz.in
- Rated Current/phase: 1.5A
- Phase Resistance: 2.8ohms
- Inductance: 3.8mH
- Driving Voltage: 12-24V

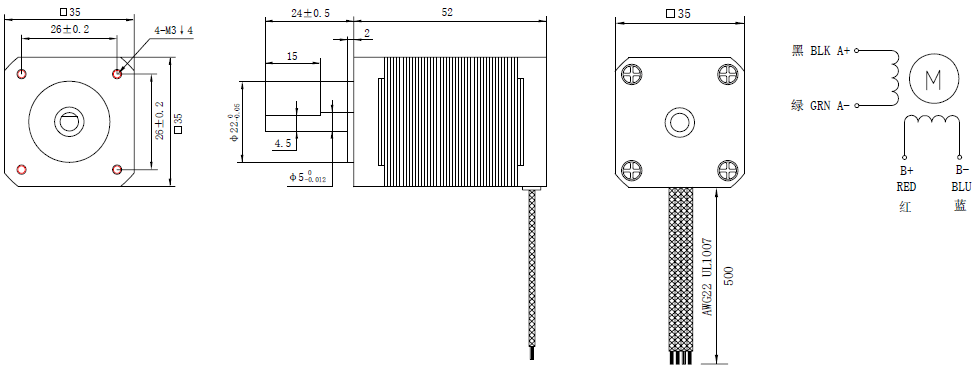

Physical Specification
- Frame Size: 35x35mm
- Body Length: 52mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.29kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.4 |
| Holding Torque(oz.in) | 56.8 |
| Rated Current(A) | 1.5 |
| Phase Resistance(ohm) | 2.8 |
| Phase Inductance(mH) | 3.8 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 52 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.29 |
