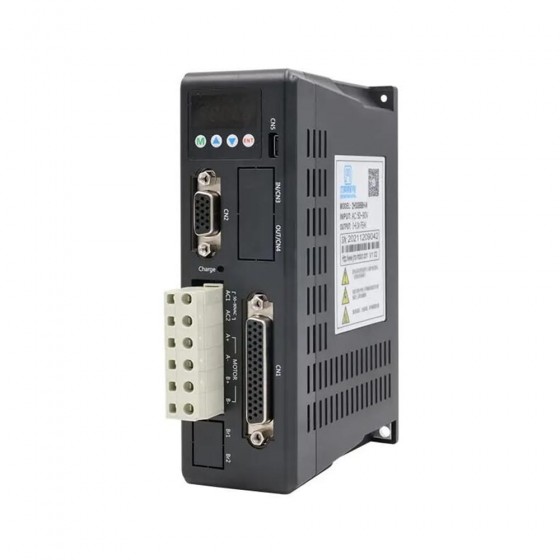

2 Phase Closed-loop Stepper Drive Controller 24-80VAC/30-100VDC Max 7.0A Digital Dispaly Panel
- Part Number: 2HCS868H
- Lead Time: In Stock
- Unit Price: $85.00
- Sales: 1
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
2 Phase Closed-loop Stepper Drive Controller 24-80VAC/30-100VDC Max 7.0A Digital Dispaly Panel
Key Features:
- Phase Number: 2
- Output Voltage: 24-80VAC/30-100VDC
- Output Current: 0-7.0A
- Signal Votalge: 5-24V
- Pulse Frequency: Max. 200KHz
- Encoder Resolution: 1000/2500 Lines
- Dimensions: 128.7x80.5x34mm
- Working Temperature: 0~+70℃
- Storage Temperatue: -20℃~+80℃
- Humidity: 40~90%RH
- Cooling Type: Natural or Forced Air Cooled
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VAC) | 24-80 |
| Input Voltage(VDC) | 30-100 |
| Output Current(A) | 0-7 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |
| Dimensions(mm) | 128.7x80.5x34 |
| Weight(KG) | 0.6 |
